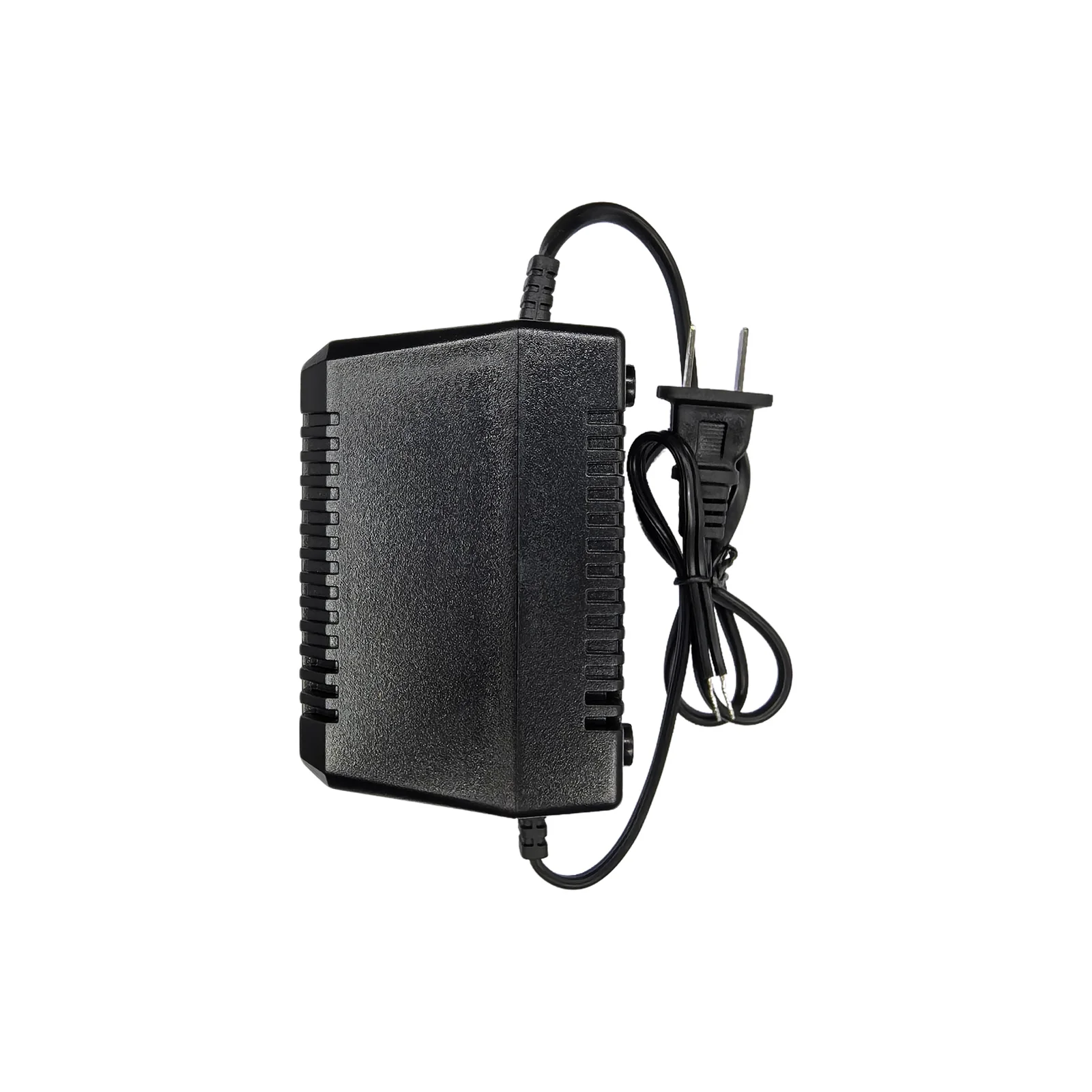

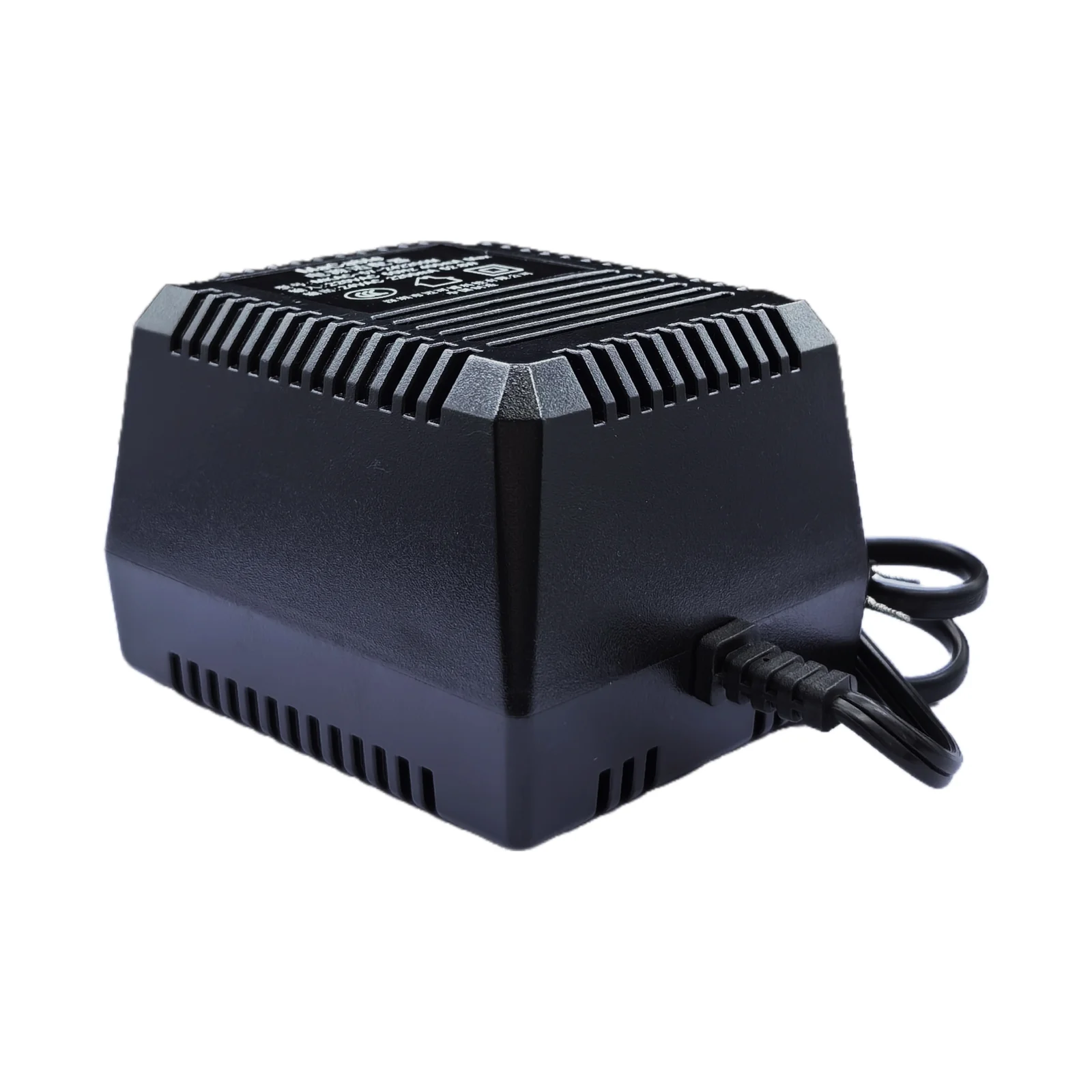

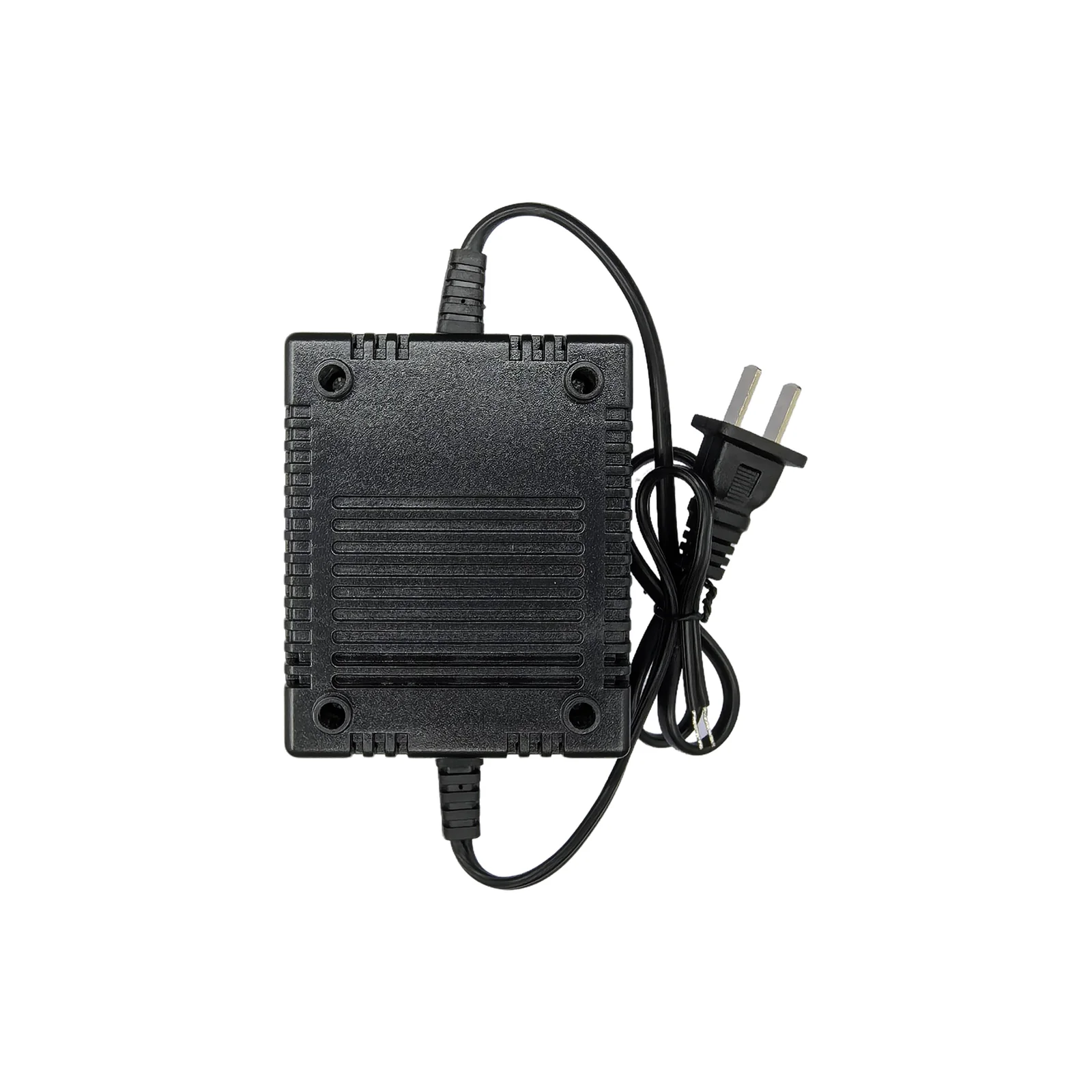

Security surveillance charger 24 V 60W Power Adapter CCTV
MKAC-57-242500M is a 24V 2.5A 60W security power supply with a wide -40°C to +70°C temperature range for CCTV, access control and alarm systems. EU Level VI efficiency, OCP/OVP/SCP protection and compliance with UL62368/EN62368 and global EMC/EMI standards. OEM/ODM customization available from Macable for engineering and security projects.
Description
Key Features & Benefits
24 V / 2.5 A, 60 W output
Provides sufficient power for multiple cameras, controllers or detectors on one 24 V bus, helping integrators reduce the number of power modules and simplify wiring.
Wide temperature range for harsh environments
Designed to operate from -40 ℃ to +70 ℃, suitable for outdoor security boxes, industrial sites, parking lots and other applications exposed to low or high temperatures.
High efficiency, energy-saving design
Compliant with EU Level VI energy efficiency, which helps reduce standby losses, lower heat generation in enclosed cabinets and extend component lifetime.
Stable 220 V / 50 Hz AC input
Rated input 220 V, 50 Hz with AC cable input, easy to connect on-site and compatible with common mains environments in Asia, the Middle East, Africa and many emerging markets.
Complete protection functions
Built-in over-current protection (OCP), over-voltage protection (OVP) and short-circuit protection (SCP) protect both the power supply and end devices, reducing failure risk and after-sales cost.
Rugged housing for engineering installation
Compact 99.5 × 82 × 66.5 mm housing and 1121 g weight make it suitable for mounting inside metal security boxes, wall cabinets or control panels.
Meets global EMC/EMI and safety standards
Compliant with UL62368, EN62368, FCC PART 15, EN55032 and GB4943.1, helping your complete system pass certification and speed up market access.
